Linear Motor wiring

Linear Motor SMC115-S120-X3

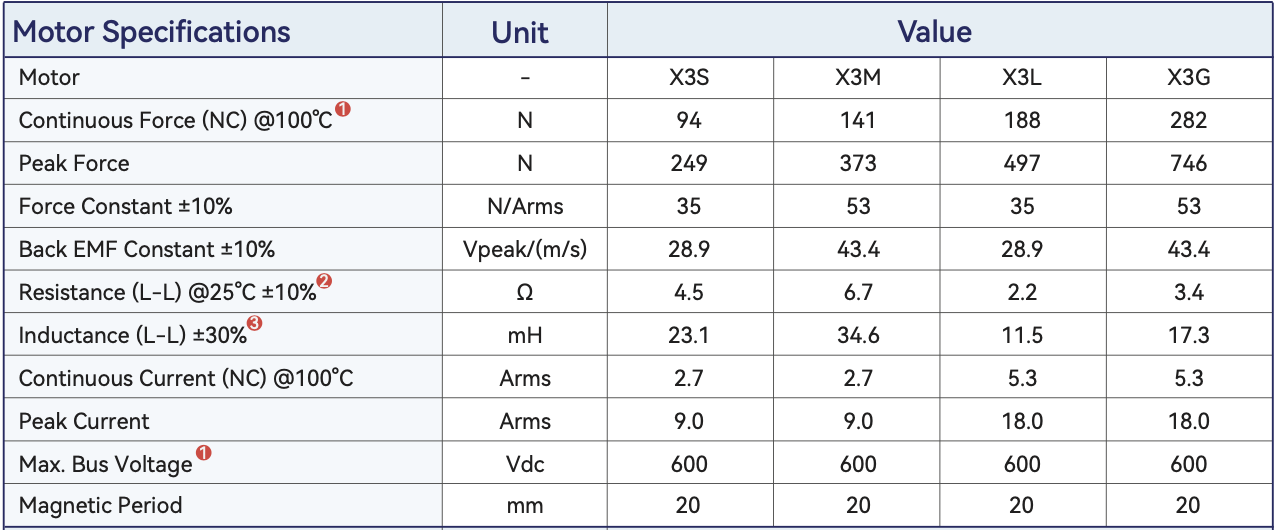

InfoMotor Specifications:

Repeatability (μm) : +/-4.

Magnetic Period: 20 mm.
Info

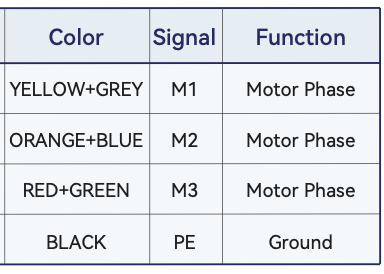

Motor wiring:



Info

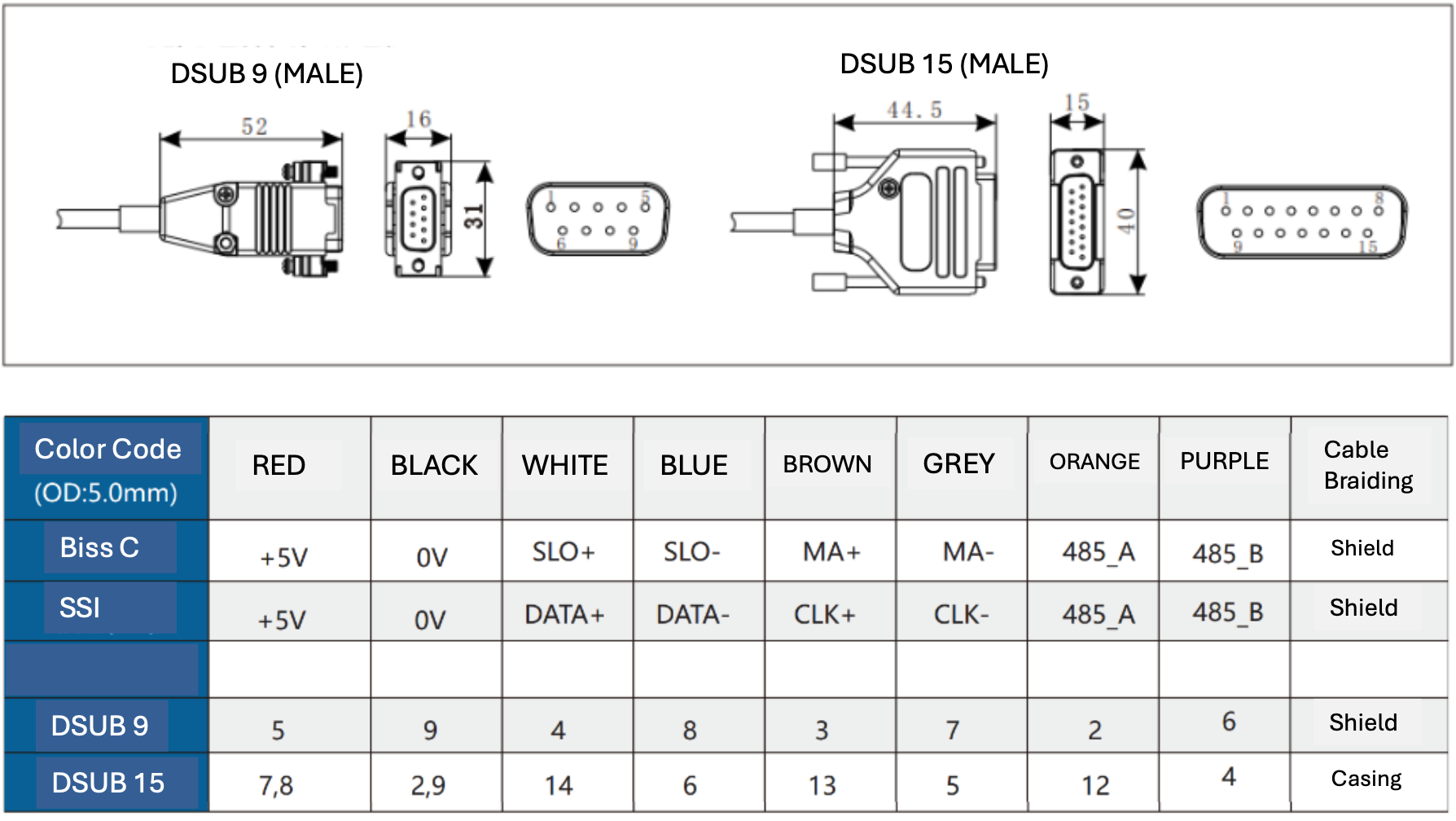

Absolute Encoder Connector Pinout:

Encoder Output Type: Absolute: 1.0 (resolution in um), BISS-C (protocol)
Encoder resolution: 1 um.
Data Length: 26 Bits.
Effective resolution: 26 Bits.


Info

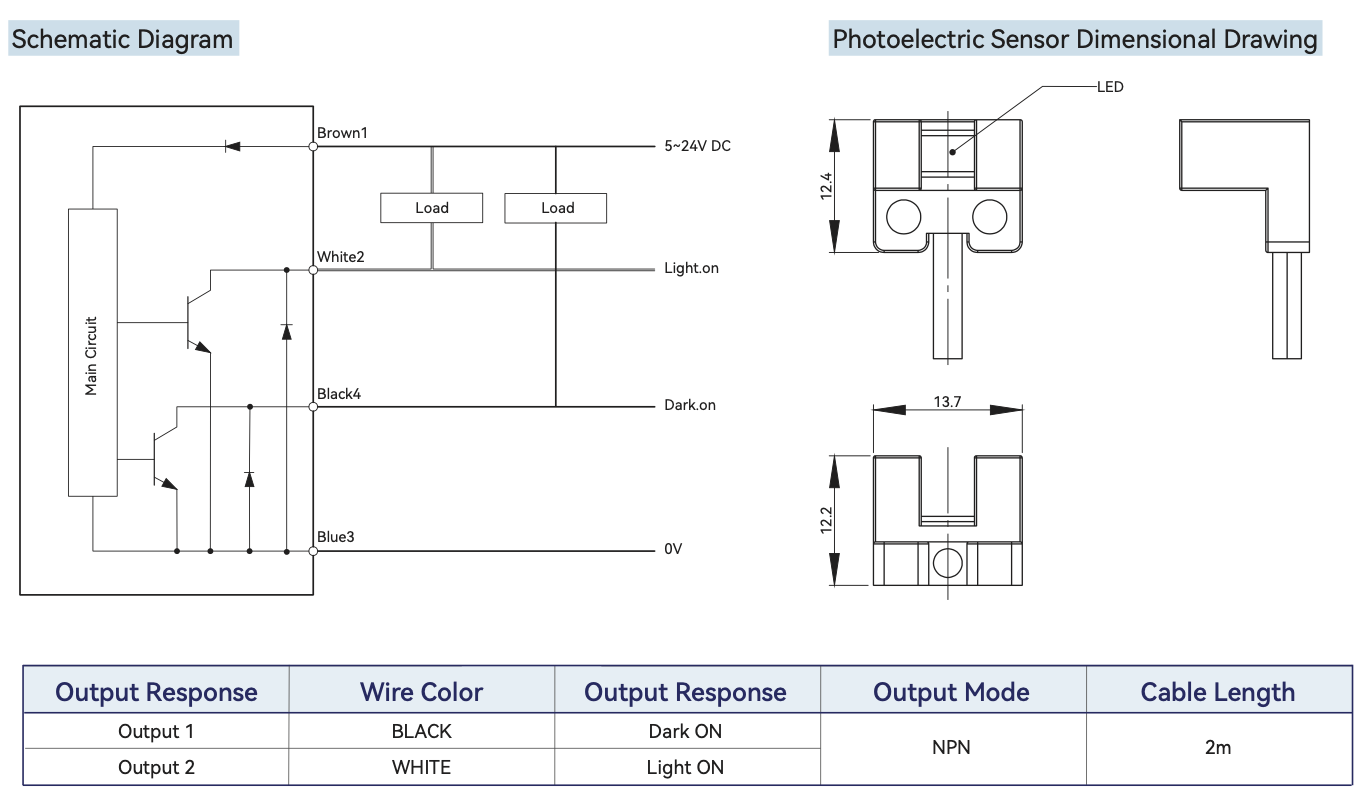

Home / Limit Photoelectric Sensor:



Info

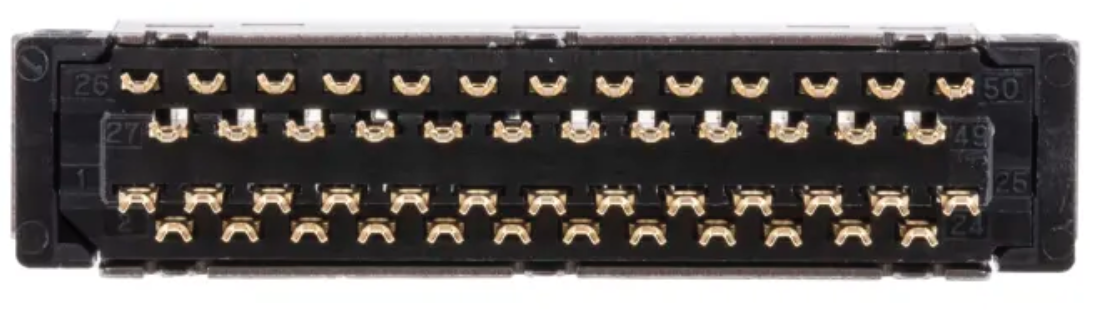

MDR 26 Pin layout:


Info

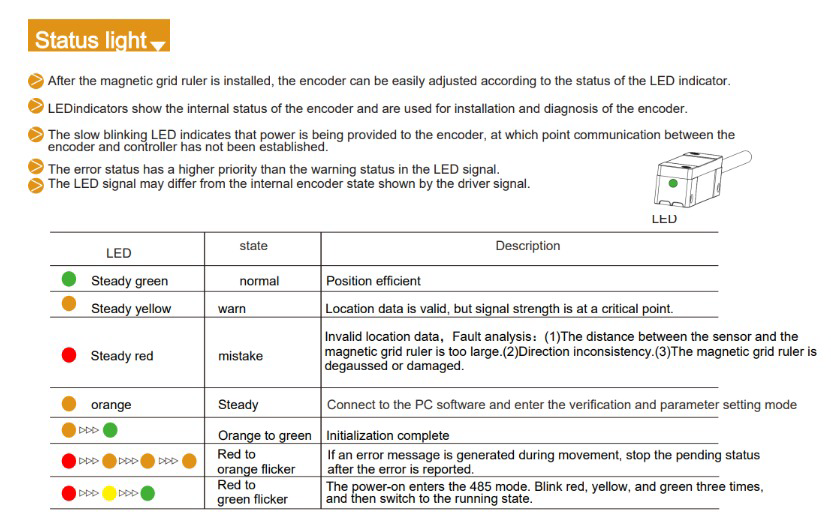

Status Light of encoder:
